Recording Rate: 240 fps / 200 fps (NTSC / PAL)
-
Display Rate: 480 fps / 400 fps (NTSC / PAL)
| Specifications | |

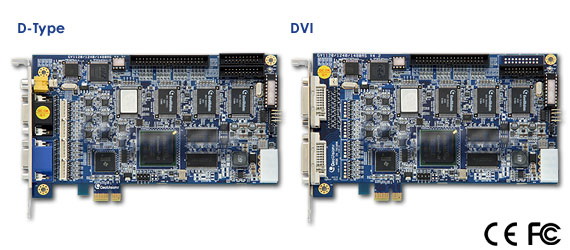

| Input Type | DVI : DVI x 2 (one for 16 video, one for 16 audio) D-Type: DB15 x 2 (for video) ; DB9 x 2 (extension card for audio) |
| Video Input(s) | 8, 16 Cams |
| Audio Input(s) | 8, 16 Channels |
| TV Output | RCA Connector x 1 |
| Total Recording Rate At 320 X 240 Resolution |
240 fps (NTSC), 200 fps (PAL) |
| Display Rate | 480 fps (NTSC), 400 fps (PAL) |
| Video Resolution - NTSC/PAL | Full D1, Half D1, CIF |
| Compression Format | Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2 |
| GV-NET Card Support | Yes |
| GV-NET/IO Card Support | Yes |
| Dimensions | DVI PCI : 165 x 95 (mm) / 6.50 x 3.74 (in) D-Type PCI : 170 x 95 (mm) / 6.69 x 3.74 (in) D-Type PCI Express: 212 x 99 (mm) / 8.35 x 3.90 (in) |
| Installation Guide | DVI PCI D-Type PCI D-Type PCI Express Installing Two Cards |
| Note: GV-1240 is currently not compatible with VIA series and ATI series chipset motherboards, and 64-bit Windows operating system. | |
| Minimum System Requirements For One Card | |
| OS Supported | Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista (Not support 64-bit version of Windows) |
| CPU | Pentium 4-3.0 GHz Dual Core |
| RAM | Windows 2000 / XP: 2 x 512 MB Dual Channels Windows Vista / Server 2003: 2 x 1 GB Dual Channels |
| HDD | 120 GB |
| VGA | ATI Radeon X600 NVIDIA 6200 |
| DirectX | 9.0c |
| Minimum System Requirements For Two Cards | |
| OS Supported | Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista (Not support 64-bit version of Windows) |
| CPU | Core 2 Duo, 2.53 GHz |
| RAM | 2 x 1 GB Dual Channels |
| HDD | 250 GB |
| VGA | ATI Radeon X1300 PCI-E NVIDIA GeForce 7300 PCI-E |
| DirectX | 9.0c |
