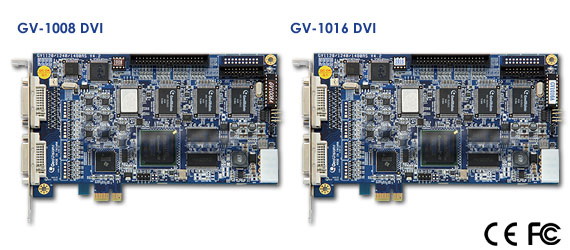

GV-1008DVI
GV-1008DVI - GV-1008DVI

  • Recording Rate: 240 fps /  200 fps (NTSC / PAL)
  • Display Rate: 240 fps / 200 fps (NTSC / PAL)

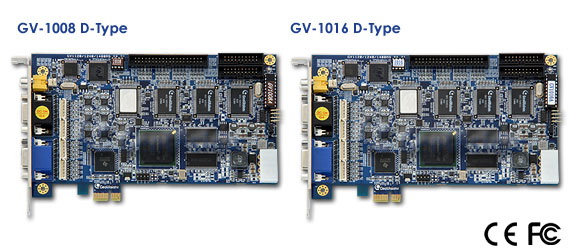

 GV-1008D

GV-1008D - GV-1008D

The GV-1008, as a three-in-one combo card, provides one single card solution for 8 video/audio recording, real-time display and TV-out display. This Card can record 8 channels at D1 in real time. When the two Cards are installed in the system, it can be utilized to provide a single TV-out display of 16 cameras and maintain a high recording rate of 480 fps at D1 resolution.

Specifications
  GV-1008 GV-1016 (GV-1008 x 2)
Input Type D-Type DB15 x 1 (Video); DB9 x 1 (Audio) DB15 x 2 (Video); DB9 x 2 (Audio)
DVI DVI x 1 (Video); DVI x 1 (Audio) DVI x 2 (Video); DVI x 2 (Audio)
Video Input(s) 8 Cams 16 Cams
Audio Input(s) 8 Channels 16 Channels
TV Output RCA Connector x 1
Total Recording Rate
At MPEG4 (ASP)		 CIF 240 fps (NTSC), 200 fps (PAL) 480 fps (NTSC),
400 fps (PAL)
D1 240 fps (NTSC),
200 fps (PAL) 		480 fps (NTSC),
400 fps (PAL)
Display Rate CIF 240 fps (NTSC),
200 fps (PAL)		 480 fps (NTSC),
400 fps (PAL)
D1 240 fps (NTSC),
200 fps (PAL)		 480 fps (NTSC),
400 fps (PAL)
Video Resolution NTSC 720x480, 720x480 De-interlace, 640x480,
640x480 De-interlace, 360x240, 320x240
PAL 720x576, 720x576 De-interlace, 640x480,
640x480 De-interlace, 360x288, 320x240
Compression Format Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
GV-Multi Quad Card Support Yes
GV-Loop Through Card Support Yes
GV-NET/IO Card Support Yes
Dimensions (W x H) 179 x 99 (mm) / 7.04 x 3.89 (in)
Installation Guide GV-1008 / GV-1016
Note: GV-1008 is currently not compatible with VIA series and ATI series chipset motherboards.
Minimum System Requirements For One Card (GV-1008)
OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit Windows 7 / Windows Server 2008
CPU Core 2 Duo, 3.0 GHz
RAM Windows XP: 2 x 512 MB Dual Channels
Windows Vista / 7 / Server 2008: 2 x 1 GB Dual Channels
HDD 250 GB
VGA ATI Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E
DirectX 9.0c
Minimum System Requirements For Two Cards (GV-1016)
OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008
64-bit Windows 7 / Windows Server 2008
CPU Core i5-750, 2.66GHz
RAM 2 x 1 GB Dual Channels
HDD 500 GB
VGA ATI Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E
DirectX 9.0c
