- Recording Rate: 480 fps / 400 fps (NTSC / PAL)
- Display Rate: 480 fps / 400 fps (NTSC / PAL)
| Specifications | |||

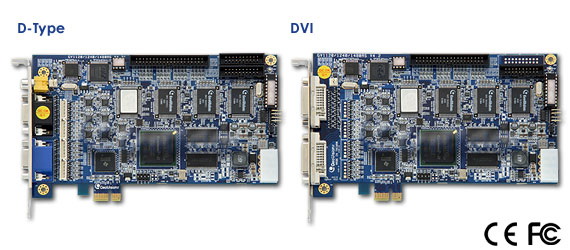

| Input Type | D-Type | DB15 x 2 (Video); DB9 x 2 (Audio) | |
| DVI | DVI x 1 (Video); DVI x 1 (Audio) | ||
| Video Input(s) | 16 Cams | ||
| Audio Input(s) | 16 Channels | ||
| TV Output | RCA Connector x 1 | ||
| Total Recording Rate At MPEG4 (ASP) |
CIF | 480 fps (NTSC), 400 fps (PAL) | |
| D1 | 240 fps (NTSC), 200 fps (PAL) | ||
| Turbo VGA | 416 fps (NTSC), 400 fps (PAL) | ||
| Turbo D1 | 352 fps (NTSC), 320 fps (PAL) | ||
| Display Rate | CIF | 480 fps (NTSC), 400 fps (PAL) | |
| D1 | 480 fps (NTSC), 400 fps (PAL) | ||
| Video Resolution | NTSC | 720x480, 720x480 De-interlace, 640x480, 640x480 De-interlace, 360x240, 320x240 |
|
| PAL | 720x576, 720x576 De-interlace, 640x480, 640x480 De-interlace, 360x288, 320x240 |
||
| Compression Format | Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2 | ||
| GV-Multi Quad Card Support | Yes | ||
| GV-Loop Through Card Support | Yes | ||
| GV-NET/IO Card Support | Yes | ||
| Dimensions (W x H) | 179 x 99 (mm) / 7.04 x 3.89 (in) | ||
| Installation Guide | Single Card & Two Cards | ||
| Note: GV-1480A is currently not compatible with VIA series and ATI series chipset motherboards. | |||
| Minimum System Requirements For One Card | |||
| OS Supported | 32-bit | Windows XP / Windows Vista / Windows 7 / Windows Server 2008 | |
| 64-bit | Windows 7 / Windows Server 2008 | ||
| CPU | Core 2 Duo, 3.0 GHz | ||
| RAM | Windows XP: 2 x 512 MB Dual Channels Windows Vista / 7 / Server 2008: 2 x 1 GB Dual Channels |
||
| HDD | 250 GB | ||
| VGA | ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E |
||
| DirectX | 9.0c | ||
| Minimum System Requirements For Two Cards | |||
| OS Supported | 32-bit | Windows XP / Windows Vista / Windows 7 / Windows Server 2008 | |
| 64-bit | Windows 7 / Windows Server 2008 | ||
| CPU | Core 2 Quad, 2.4 GHz | ||
| RAM | 2 x 1 GB Dual Channels | ||
| HDD | 500 GB | ||
| VGA | ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E |
||
| DirectX | 9.0c | ||
| Minimum System Requirements For Turbo Mode | |||
| Model | GV-1480A x 1 | GV-1480A x 2 | |
| CPU | Core 2 Quad, 2.4 GHz | Core i7-920, 2.66 GHz | |
| RAM | 2 x 512 MB Dual Channels (Windows XP) 2 x 1 GB Dual Channels (Windows Server 2008 / Vista / 7) |
2 x 1 GB Dual Channels | |
| VGA | ATI Radeon X1300 PCI-E / NVIDIA n7300 PCI-E |
ATI Radeon X1300 PCI-E / NVIDIA GeForce 7300 PCI-E | |
| HDD | 320 GB | 750 GB | |
