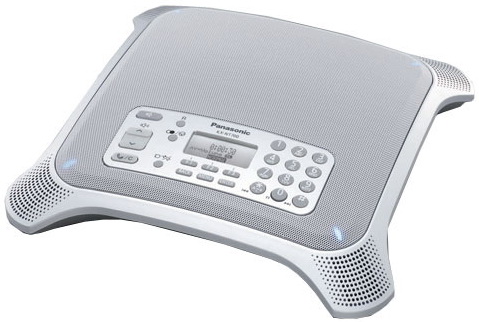

Desktop IP Conference System

kx-nt700 - Desktop IP Conference System

connects with standard office telephone systems for seamless inter-working

IP Conference System SD CARD SUPPORT

KX-NT700 is an advanced conferencing solution that can connect over standard office data network or even broadband connections. This Multi-party IP Conference Phone supports Hi-Definition sound, web based conference solutions and everything to make communications as simple as a face-face meeting. It even connects with standard office telephone systems for seamless inter-working. KX-NT700 - A valuable asset to help you collaborate - across your board rooms, or around the globe.



  • USB CONNECTION TO PC

Connect to PC for control.

  • BEAM FORMING TECHNOLOGY

Microphones follow the natural speech flow as you move.

  • REAL-TIME SLOW-TALK

Press a button to listen to fast talkers in real time, or play back your recorded meeting at a slower speed, (for taking notes) whilst maintaining the full overall conversation meaning.

  • NOISE REDUCTION

Cut unwanted background noise from Projectors, fans etc.

  • 3 PARTY CONFERENCE

Conference up to three units together, or conference 1 analogue call into a 2 party IP conference meeting

  • CONFERENCE MANAGER APPLICATION

PC based application for voice message editing, conference unit control, and 3rd party collaboration applications.

  • AUDIO IN/OUT

3.5mm Audio Input/Output jack that can be used to connect to:a. External audio recording devicesb. Personal Computers, orc. Wireless Handsets

  • HIGH DEFINITION VOICE QUALITY

Full Duplex 7KHz Audio.

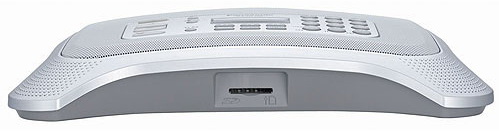

  • SD CARD SUPPORT

Record you meetings on to a SD card

  • PSTN INTERFACE
  • LAN INTERFACE (SIP)

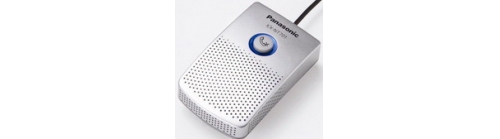

 Accessories - External Microphone

The KX-NT700 supports up to 2 KX-NT701

 External Microphones

kx-nt701 - External Microphones
.



  Key Benefits:

Set up meetings quickly and conveniently without compromise.Excellent sound quality ensures everyone understands the whole conversationEasy to set up, up to 3 conference phones on a standard office data or broadband IP network. Save on hotel and travel costs, whilst maintaining the feel of a live meeting.Connect into Web and Video conference solutions for much larger meetings.

Conference Phone Manager Application

The Conference Phone Manager is a Windows based application tool providing full access to all conference unit features and functionalities:

  • Call Setup
  • Volume Control
  • Mute
  • Dialling Keypad
  • Phonebook
  • Multi-party Conferencing
  • Ability to share applications to conference participants
  • Phonebook access and management
  • Calendar synchronization and call automation
  • Call logs of calls made/received
  • Application to record and edit call and memo recording



Signaling Protocol SIP RFC3261 and companion RFCs
VoIP        CODEC G.711(A/u),G729a,G.722(64kbps)
PLC Yes (G.711 only)
Silence suppression No
CNG No
Jitter buffer Max 500ms (G.729a)
Packet Header compression No
QoS IEEE 802.1 P/Q, Layer 3TOS,Diffserv
Network     TCP/IP, UDP,RTP Yes
RTCP Future support
FTP client Yes
DHCPclient Yes
Telephone               Caller ID No
Phonebook 100
Stored Dial Max. Digits 32
Mute Yes
Flash Yes
Pause Yes
Redial Yes
History Redial 10
Ringer Patterns 3
Ringer Volume Off,Low,Midd!e,High
SP-Phone Volume 8 steps
Programmable Tone/Pulse Yes
Multi point соnferencing 3 points
All/individual disconnect Yes
Conference Recording        Recording time period 67 Hours (2GB SD card)
Number of recordings Maximum 100
New message playback Yes
FF/REV/STOP Yes
Skip/Repeat Yes
All/individual erase Yes
Time stamp Yes

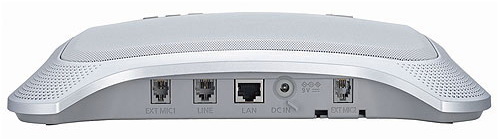

Analog Line Interface   l/F connector RJ11x1
Dialing Dial Pulse (DP) 10pps,20pps Tone (DTMF) Dialing
Ethernet Interface   l/F connector RJ45x1
Transceiver type 10/100 Base-T, Auto MDI/MDX
General purpose Interface     USB Interface USB2.0 (Low/Full speed) Device Function x 1
SD slot 1
Audio Line In/Out o3.5mm mini-jack x1
l/F connector RJ9x2
Microphone Interface External MIC-Mute MIC-Signal-Input)
Audio Interface         Loudspeaker 1
Speaker volume Adjustable to 85dB at 0.5m
Range of frequency 300Hz-7000Hz
Stereo/mono mono
Internal microphone Microphone x 4 corners
Microphone coverage 3 m Radius
Range of frequency 300Hz-7000Hz
S/N Ratio Above 58dB at 1kHz
Display    LCD Resolution 103 x 48 Full dot
LCD Back light Yes (white)
LCD contrast Yes (6-level)
Status Indicator LED 4 (dual-colored LED red & blue)
Keypad     Function key F1.F2.F3
Volume (scroll) key UP, DOWN
Dial key- 0-9,*,#
Other key SP-Phone, Flash, Redial/Pause. Mic Noise Cut, Clear, Back, Menu, Enter
Chassis   Size 2 3/16"H x 101/16"W x 101/16"D
Weight 2.87 lbs.
Power supply AC Adapter (PQLV206) lnput85-276V/max 0.3A Output DC9V 750mA
PoEPower consumption   IEEE802.3af compliant Max6.5W
Environmentconditions    Operating temperature 0°C-40°C
Storage temperature -10°C-50°C
Relative humidity Less than 90% (non-condensing)
