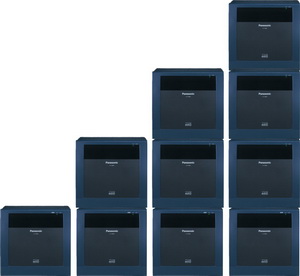

KX-TDE600 line UP

KX-TDE600 line UP - KX-TDE600 line UP

Converged IP-PBX System with up to 1152 Extensions and 640 Co

Full IP and Expandable Office Communication System

 The Panasonic KX-TDE600 builds on the “Pure IP PBX” converged model as in KX-TDE100 / 200. As an advanced communication platforms for IP networking Environments, Supporting network as well as desktop SIP connectivity, the convergence ready KX-TDE products support a range of advanced IP telephones as well as digital extensions and ISDN trunks. Built as a business application environment and bundled with important business telephony applications – the KXTDE systems can easily address you business communication needs well into the 21st Century. Targeting Medium to Large businesses, single site or multiple offices, the TDE600 is a welcome member to the family to support customer needs.

The new KX-TDE IP PBXs are packed with features and applications that can enhance your business productivity and have a direct impact on your business communication bottom line. Some of the key benefits include:

  • Support small to large communication system.
Up to maximum 992 (with DXDP 1152) Extensions/ 512 mobility Extensions
  • Built-in support for Advanced IP extensions as well as standard SIP phones.
  • Easy Migration to IP
Upgrade from KX-TDA to KX-TDE, simply by exchanging the Main Processor Card.
  • SIP trunking
Integrated SIP telephony via ITSPs* and other SIP trunk Providers.
  • Panasonic Phone Assistant CTI software with TDE600.
It is a high intuitive PC Based application suit that blend powerful point and click telephony.
  • Wireless Mobility Solutions.
TDE support KX-TCA series for DECT
  • Built-in and Optional Voice Mail Processing system Optional Cards:
Internal:ESVM2 KX-TDA0192 2ch SVM, 2ch DISA (250message, 120minutes),ESVM4 KX-TDA0194 2X2ch SVM, 4ch DISA (2x250message, 120minutes)External:KX-TVM50 (2- 6Channels 4-8hours),KX-TVM200 (0-24Channels 1000hours)
  • Reduced Total Cost of Ownership
(Installation & Network call costs reduced)

Enhance your business with an integrated SIP solution designed to meet your ever changing needs - withwireless mobility, productivity applications, network solutions and a common infrastructure that supportscompanies with distributed and geographically diverse office locations and helps connect all your users with customers wherever they may be.

*ITSP : Internet Telephony Service Providers


CO Ch. Total Available Trunks 640

  • 640LCOT
  • 640 BRI
  • 600 PRI
  • 640 IP-GW
  • 32 SIP Trunk

Telephone Total Available ext 992 (1152 ) DPT (DXDP)

  • 128 SIPEXT
  • 672 IP EXT
  • 320 APT
  • 640 DPT
  • 960 SLT
