Alarm/Sensor Recording Function
-
Continuous Playback Function
-
Specifying Network Drives
-
MPEG Conversion
-
Version Information Change
*Recording or Playing Images with Audio
*Advanced Motion Detection Recording
*Advanced Timer Recording and Search Ability
*Layout Feature of Operation Window
*Remaining hard disk capacity limit
*Camera List
*Recording Capacity Limit
*Automatic Backup
This software supports the following Panasonic Network Cameras.
*IPv6/Audio Type: BB-HCM311,HCM331,HCM371,HCM381
*Compact Type: BL-C10,BL-C30
*Wireless Type: KX-HCM250,HCM270
*Wired Type: KX-HCM280, HCM230,HCM10,HCM8
Features *Record images from multiple Network Cameras Still or motion Images
can be recorded over an intranet or via the internet.
*Images from multiple cameras can be recorded simultaneously.
*The number of camera images which can be recorded simultaneously
varies by the performance capabilities of the computer. 1.Alarm/Sensor Recording Function "New"
Recording can be activated using the Camera's Alarm/Sensor function.
(This was not possible in previous versions).2.Continuous Playback Function "New"
Multiple selected images can be played back in succession.
(This was not possible in previous versions).3.Specifying Network Drives "New"
Network based drives can be specified as save destinations etc.
However, network performance may decrease significantly when using this function.
(This was not possible in previous versions).4.MPEG Conversion "New"
Recorded images can be converted to MPEG-1 files.
* For audio images, only images (and not sound) will be converted.5.Version Information Change "New"
All version information has been changed to 2.03R01.6.Recording or Playing Images with Audio
This software records or plays images with audio from the camera . Since you can record images with audio, recorded images become impressive. For example, you can use the images with audio for training employee after you record your shop scene. This software can also record multiple cameras simultaneously. 7.Advanced Motion Detection Recording
Motion detection recording is improved from BB-HNP60. You can set a time (1?60 seconds) to record before or after motion detection . You can check the detail condition when the motion was detected. 8.Advanced Timer Recording and Search Ability
You can set a keyword in timer recording . You can manage images by keyword. 10 settings can be set in timer recording for each camera. Additionally,you can search images by time, recording method (such as timer recording and motion detection recording), or keyword .9.Layout Feature of Operation Window
You can change size or location of camera list or operation bar for the camera,or you can display them separately. 10. Camera List
The registered cameras can be listed, and the camera preview size can be set in 6 levels.11. Recording Capacity Limit
If you set the maximum value, you can limit the recording capacity. 12. Automatic Backup
This software starts backing up images at the set time.
| Camera registration Monitoring | |
| No. of registerable camera units | No limitation. Note that the actual number of registerable camera units varies depends on the performance of the PC used. |

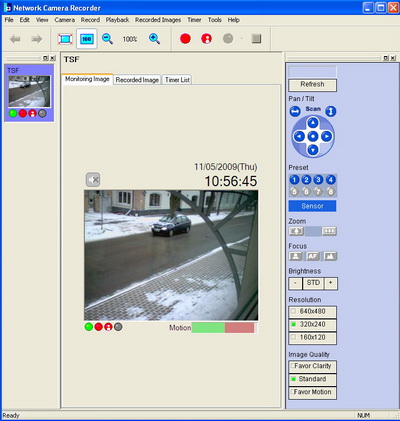

| Camera image view | Images captured by registered cameras are shown in small images on a single screen. |
| Image display size | 6 sizes from 320 x 240 to 60 x 45 |
| Camera setup | Each camera can be set up individually (camera name, resolution, image quality setting, recording format, timer setting, etc.). |
| Selected camera image display | The image of the selected camera can be enlarged (640 x 480, 320 x 240, 160 x 120) |
| Image zoom in/out | Increase/decrease of image size in 25% steps (25% to 700%), image display size adjusted according to window size. |
| Camera control | Control of basic camera functions (pan/tilt/zoom, brightness, resolution, image quality, sound level) |
| Preset | Preset functions set in cameras can be used |
| Recording | |
| Recording file format | Original file format: Images and voices are recorded continuously in a moving image file. |
| Recording media | Hard disk, network drive* (*A network folder allocated as the drive can be designated for saving data.) |
| Recording resolution | 640 x 480, 320 x 240, 160 x 120 |
| Image Quality | Favor clarity, Standard, Favor motion |
| Recording interval | Not specified (based on camera's image update interval), specified: 2 images/second to 1 image/hour |
| No. of camera units for simultaneous recording | Dependent on camera type and performance of PC. See the hardware specifications below. |
| Recording capacity limit function | Maximum recording capacity value can be set for individual camera units (whether to save new data by overwriting or stop recording when the set capacity is reached can be selected.) |
| Motion-detection recording | The unit can be set to activate recording when motion is detected (sensitivity and threshold value can be adjusted) or to record for a certain time length before and after motion detection. |
| Alarm recording | This function records when it is triggered by the reaction of a sensor mounted on the camera, or records for a specified time period before or after the sensor reaction. |
| Timer recording | Programming of start and stop schedules based on day of week and time. Key word can be also set for recording.(10 schedules can be registered per camera). |
| Disk capacity limit function | Monitors the free space on the specified recording disk, and stops recording when the free space becomes smaller than the set value. |
| Image operation | |
| Continuous playback | Playback of images with voices, playback of image files. Playback speed can be varied. |
| Recorded image view | Displays recorded image files in a list format. |
| Operation of recorded images | Recorded images can be copied or deleted. |
| Automatic backup of recorded images | Automatically copies recorded images in a specified folder at a set time. |
| Format conversion | Converts all or part of recorded images to JPEG or MPEG-1 format. |
| Image Search | |
| Recorded image search function | Search using recording time or key word set before recording. |
